2021814日ハイチ地震(M7.2)の合成開口レーダー(SAR)干渉解析による地殻変動
Crustal deformation due to the 14 August 2021 Haiti Earthquake (M7.2) captured by InSAR

2021.08.23

福島 洋

Yo Fukushima



2021814日にハイチ共和国で発生した地震(M7.2USGS))について、干渉SAR解析を実施しました。以下に結果を示します。

This page contains the results of InSAR analysis of the 14 August 2021 Haiti earthquake (M7.2).



使用データ:だいち2号により撮像されたSAR画像。

Used data: SAR images acquired by the ALOS-2 satellite



[干渉画像Interferograms



[アンラップ画像(衛星視線方向の変位量に換算)]

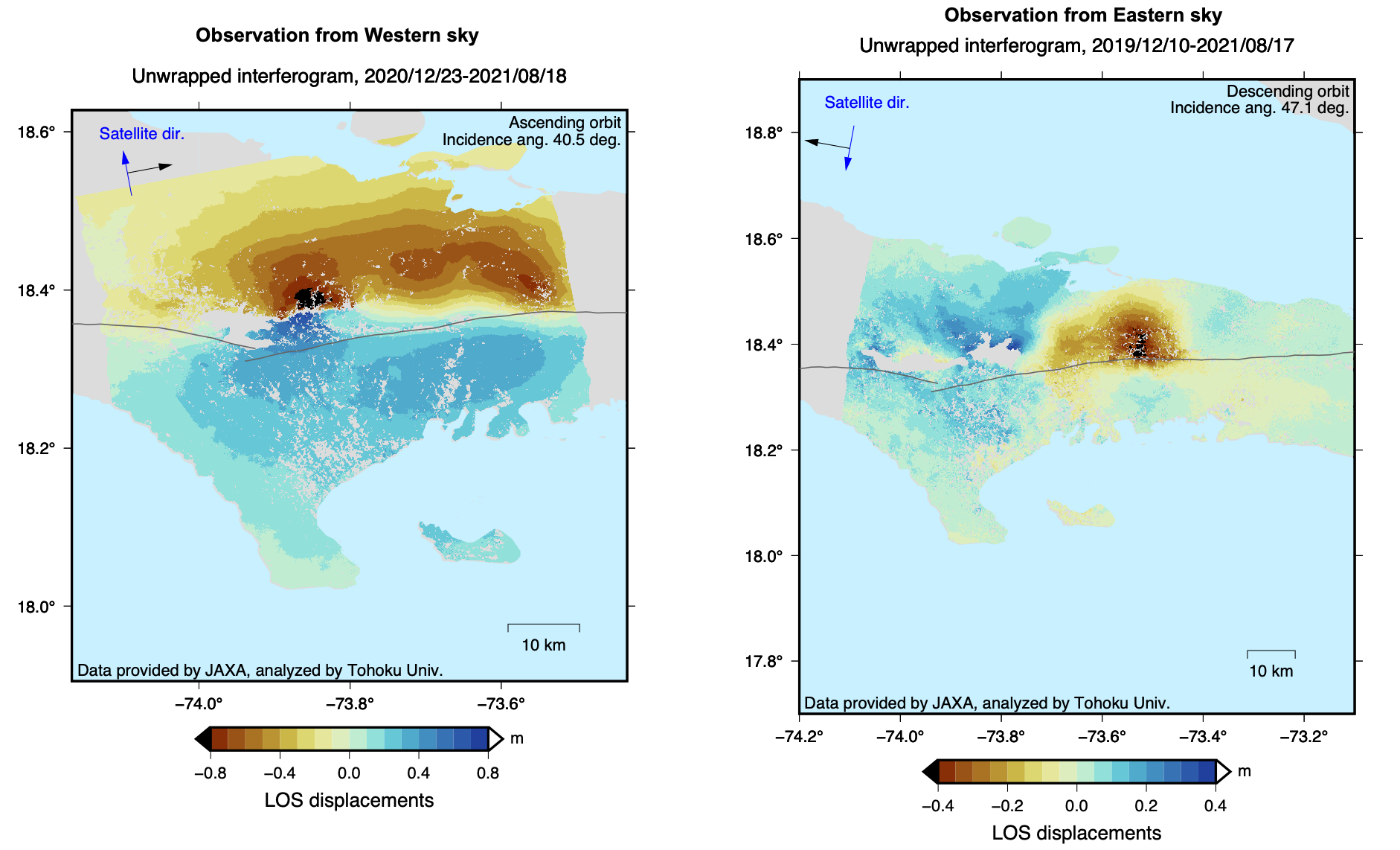

Unwrapped interferograms (Converted to the line-of-sight displacements)

赤色が衛星に近づく方向、青色が衛星から遠ざかる方向の変位を示す。

Red corresponds to displacements toward the satellite.



[結果の解釈など]

今回の地震の断層は、2010年に同じくハイチ共和国内で発生した地震(M7.0;死者31.6万人)と同様に、Enriquillo-Plantain GardenEPG)断層に沿って変動が見られました。2010年の地震は、その震源断層の傾斜角が既往研究から推定されていたEPG断層の傾斜角と大きく違ったということと、地形の特徴とも違う変動が得られた(低地が隆起した)ことから、EPG断層とは違う伏在断層(地下に隠れている断層)が破壊した可能性が指摘されています(Calaisほか, 2010; Hashimotoほか, 2011)。今回の地震による変動も、2010年の地震と同様にEPG断層の北側で相対的に大きい結果となっており、2010年の地震と同様に左横ずれ成分を含む逆断層型の破壊であったことが推測されます。これは地震波解析から得られた結果(USGSなど)と調和的です。

破壊された断層の長さは、60km程度と推測されます。その西側の端は、ちょうど推定されている活断層の折れ曲がりがある地点に対応しているように見えます。大局的には、左横ずれ成分を含む逆断層型の破壊に調和的なパターンですが、西経73.9度付近には左横ずれ型に近い変動パターンを示している領域があり、複数な破壊過程が示唆されます。

なお、2010年の地震の破壊域と今回の地震の破壊域の間は40-50kmほど間が空いており、別途指摘されている通り(Steinほか, 2021)、この区間を破壊するような地震が将来発生することはありうると考えます。



The deformation associated with the fault rupture in August 2021 appeared along the Enriquillo-Plantain Garden (EPG) fault, just as same as the earthquake that struck Haiti in 2010. Some studies suggested that the earthquake in 2010 did not rupture the EPG fault but another blind fault (Calais et al., 2010; Hashimoto et al., 2011). Similar to the 2010 quake, the deformation due to the August 2021 quake was more prominent on the northern side of the EPG fault, implying a similar transpressional fault rupture (left-lateral strike-slip and reverse slip on a northward-dipping fault plane) as the 2010 quake. This inference is consistent with the moment tensor solution by USGS.

The rupture length for the 2021 quake seems to be around 60 km. The western end of it corresponds to a kink in the active fault trace. Although the dominant rupture seems to be transpressional, we can observe a pattern typical for left-lateral strike-slip rupture around 73.9 deg. west longitude, indicating a complex rupture process.

There lies a segment of 40 to 50 km between the rupture extents of the 2010 and 2021 quakes. This “un-ruptured” segment can be considered to host a future earthquake, as pointed out by Stein et al., 2021.



本成果は、地震予知連絡会SAR解析ワーキンググループの活動を通して得られたものです。

These results were obtained through the activity of the SAR analysis working group of the Coordinating Committee for Earthquake Prediction, Japan.
